Description

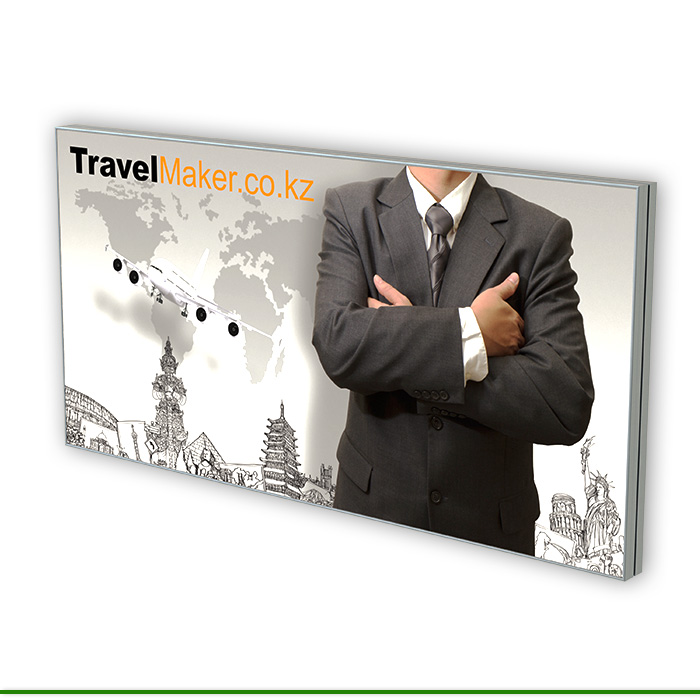

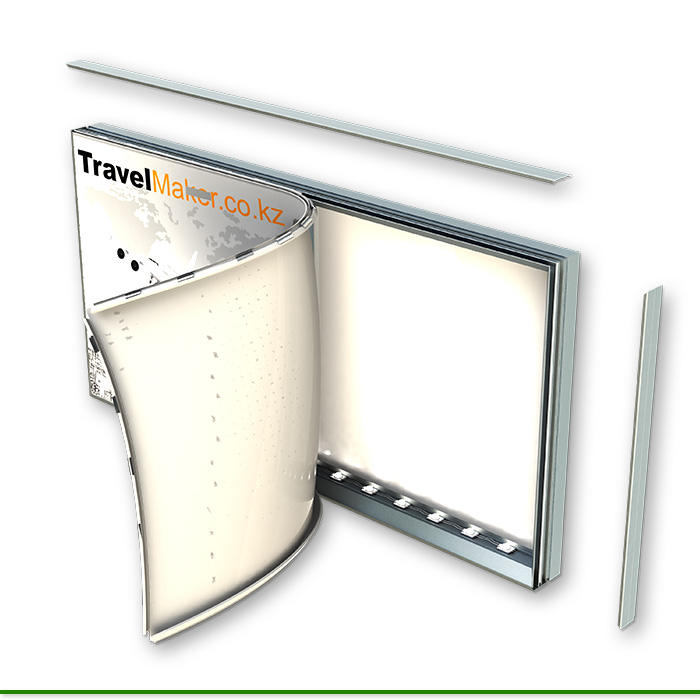

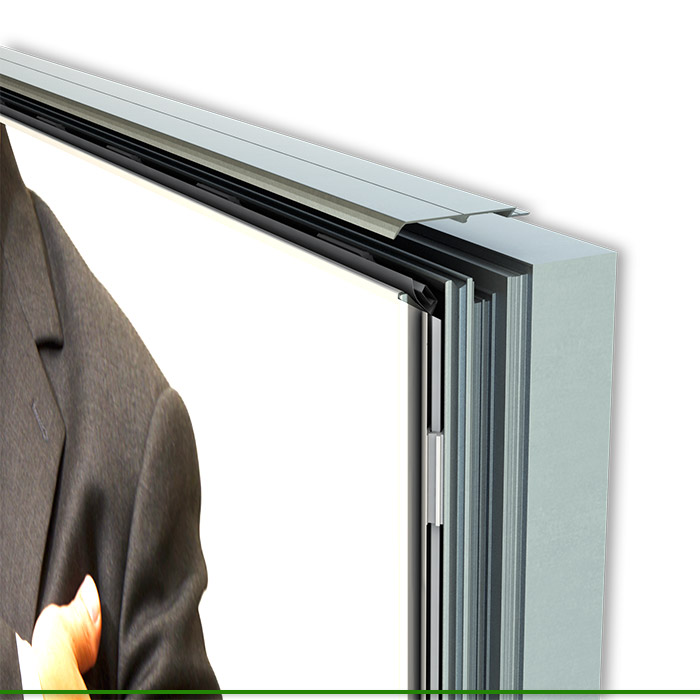

The FastFlex FTLB 130 is our latest design for highly efficient user friendly tensioning frame with integrated lightbox . The FastFlex FTLB 130 is based on a single closed hollow designed aluminum profile 130mm deep . A 10mm edge cover profile gives an almost 100% net sign face area. The FastFlex FTLB 130 belong’s to our new line of profiles design saving the need of support braces and support tubes can be fixed any where along the sign interior making it simple to assemble . Using LED modules at the back or as side flood light is easy, and the 130 mm depth making the FastFlex FTLB 130 highly energy saver as light spread is at its optimum.
One of the main advantages of the FastFlex systems is its tensioning clips. It is an extruded profiles cut to 50mm. Attaching the clips to the flex face material is also very simple, you fold the flex material on a guide line, place the clip on the fold and slide a simple PVC wedge inside, no special tools are required. The tension clip designed to lock itself to the tension frame profile harder as pushed inside and releasing the force from the wedge. Pushing the tension clips into the tension frame profile is easy with the tensioning tool or with a hammer and chisel/flat head screwdriver. Releasing the clips out is very easy with a flat screwdriver.
